Technical Specifications

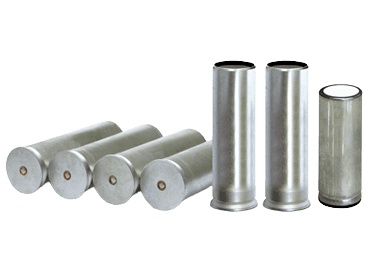

Item Code:CS cartridge Long Range Single Projectile - 40 mm

Type: Projectile, Continious Discharge Smoke

Variant: 3 Types

Discharge: CS Irritant Smoke

Application: Riot and Crowd Control

Projectiles Meterial: 1-Aluminum Cased

Discharge Time: 30 ± 5 Seconds | 20 ± 5 Seconds

Case Material: Aluminum / Reinforced plastic

Length Overall: 105 ± 1 mm | 127mm ± 2mm

Diameter: 40 mm

Overall Weight: 185 ± 5 gr | 188 ± 5 gr

Chemical Weight: 85 ± 5 gr | 95g ± 3 g

Irritant Agent:CS

Max. Range: 150 Meters

Shelf life: 5 years

Proper shipping name: Tear gas candles

Hazard Class: 6.1 or 4.1

UN Number: 1700

Packing 80units / box | 75 Units in metal Bucket

Features: CS Cartridge is burning type, and it is

loaded into 40mm Anti-Riot Gun to be discharged, and

it is discharged at high angle of approximately 40° toward

demonstrators who are 100m (short range) and more than 150m (Long Range)

or farther away, and a case shot

that was discharged is burnt in the space and emits CS

gas on the earth. it is effective in settling down demonstrators

who are a long distance away.
